Rain Bird

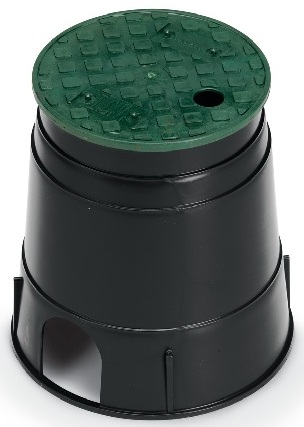

PVB Round Valve Box 6inch

Supply,Fixing & commissioning of 6"Round box with greenlid and corrugated structure with unique shovel access slot and bolt hole knockout & Having Dimensions @ Top Opening :6 1/8" Dia & Bottom Opening 8 5/8" Dia etc., complete, as per the instructions of Architect/Landscape Architect/Engineer In Charge. PVB/VB

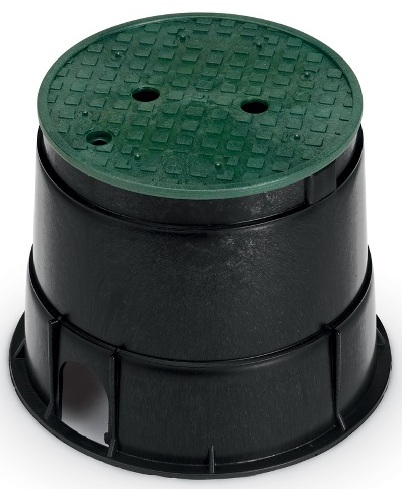

PVB Round Valve Box 10inch

Supply,Fixing & commissioning of 10" Round Valve Box with greenlid and corrugated structure with unique shovel access slot and bolt hole knockout & Having Dimensions @ Top Opening 10" Dia & Bottom Opening 12 13/16" Dia etc., complete, as per the instructions of Architect/Landscape Architect/Engineer In Charge.. PVB/VB

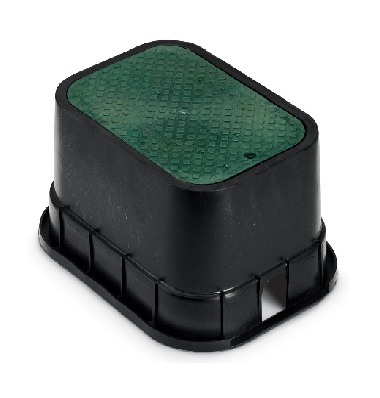

PVB Rectangular Valve Box 12inch

Supply,Fixing & commissioning of 12" Rectangular Standard Valve Box with greenlid and corrugated structure with unique shovel access slot and bolt hole knockout & having Dimensions @ Top Opening:18 1/4" L X 13" W & bottom opening :21 1/4" L X 15 15/16"W X 12" H etc., complete, as per the instructions of Architect/Landscape Architect/Engineer In Charge. PVB/VB

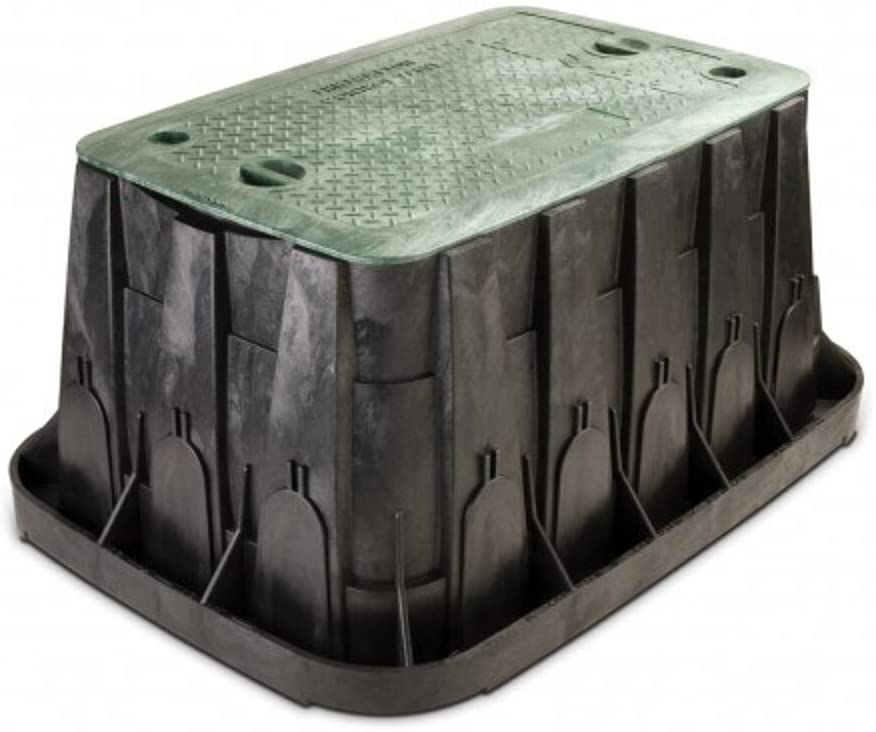

PVB Jumbo Rectangular Standard Valve Box 18inch

Supply,Fixing & commissioning of 18'' Jumbo Rectangular Standard Valve Box with greenlid and corrugated structure with unique shovel access slot and bolt hole knockout & having Dimensions @ Top Opening:18 1/4" L X 13" W & bottom opening :21 1/4" L X 15 15/16"W X 12" H etc., complete, as per the instructions of Architect/Landscape Architect/Engineer In Charge. PVB/VB

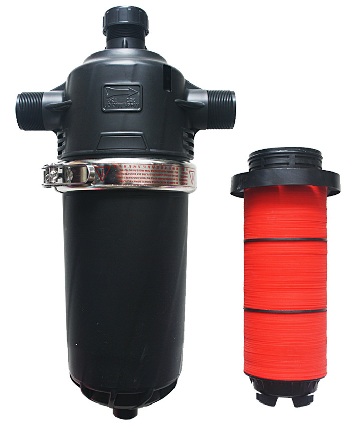

3" DISC FILTER

Supply,Fixing & commissioning of 3" Disc Filter with capacity 50m3/Hr having an suitable inlet connections , to create a helical effect in the incoming water ,spinning particulate in suspension away from the filtering element and so minimizing cleanings frequency ,3/4" outlet for flushing at bottom of filter & maximum working pressure of 10 Bars etc., complete, as per the instructions of Architect/Landscape Architect/Engineer In Charge. ARMAS

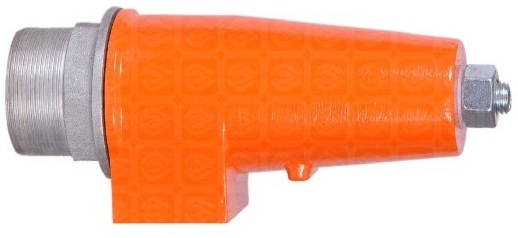

Pressure Release Valve 63mm

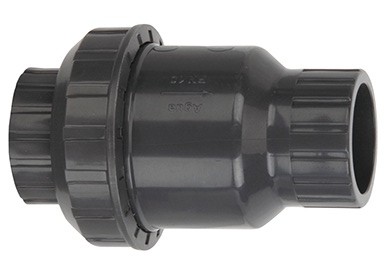

Non Return Valve (NRV) 63mm

Supply,Fixing & commissioning of 3'' Non Return Valve to prevent back flow have flap type or spring type with pressure rating of PN 10 etc., complete, as per the instructions of Architect/Landscape Architect/Engineer In Charge.

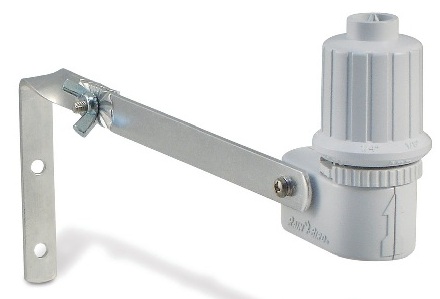

Rain Sensor

Supply,Fixing & commissioning of automatic rain shut off device ,latching hinge with multiple rainfall settings 5mm to 20mm UL CUL listed and CE approved complete RSD BEX

Flush Valve

Supply,Fixing & commissioning of 63mm/50mm/40mm dia self-closing flushing valves that are installed at the end of the irrigation line for effecting flushing of the line at the beginning of every irrigation cycle, thus avoiding the clogging of the emitters /sprinklers through removal of particles, sediments and other impurities from the water. etc., complete, as per the instructions of Architect/Landscape Architect/Engineer In Charge.

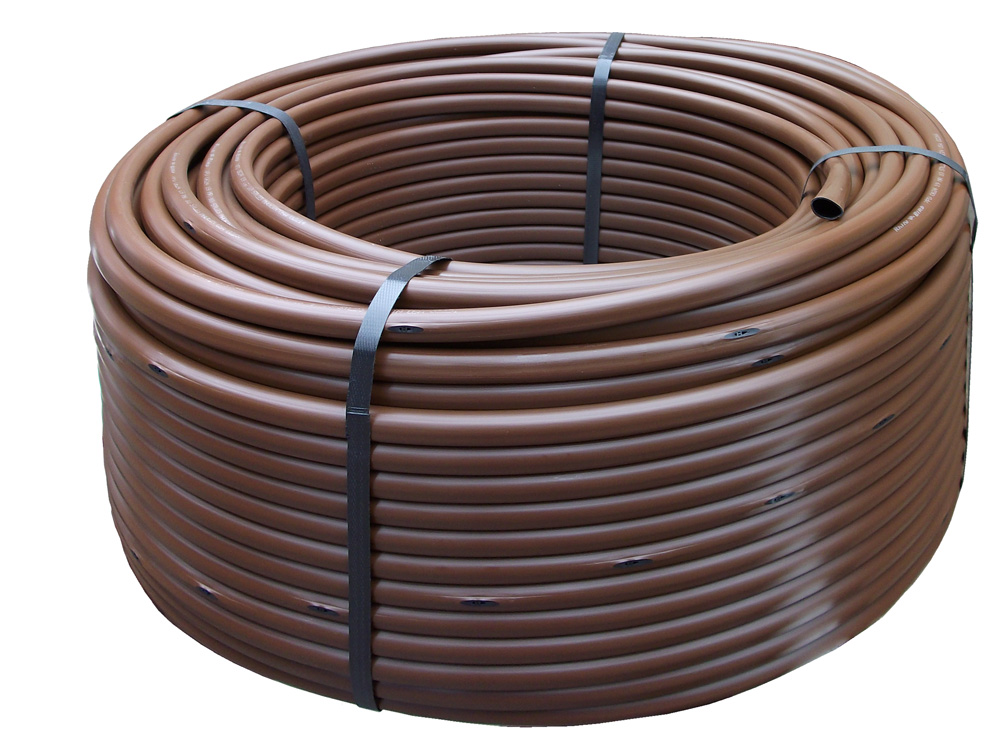

XFD PLAIN BROWN LATERAL 500FEET(152M)

Supply, Fixing & Commissioning of flexible,kink resistant 16mm inline tubing ( XFD) with pressure compensating, self flushing mechanism , Flat emitter and resistance to UV damage, algae growth brown in colour, Longer lateral run lengh with flow rate 2.3lph to 3.4 lph, pressure rating 0.58 to 4.1 bar wall thickness 1.2mm etc., complete, as per the instructions of Architect/Landscape Architect/Engineer In Charge.

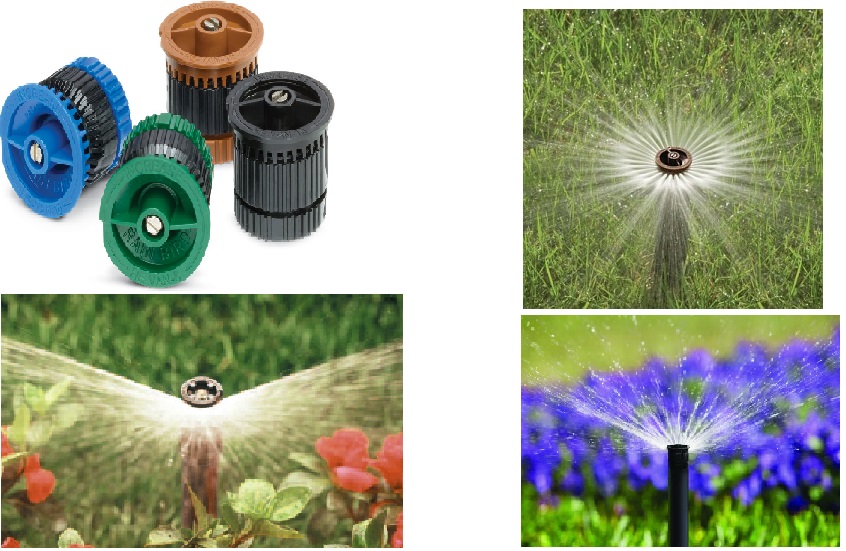

VAN NOZZLE

4-VAN Series: 0° Trajectory
6-VAN Series: 0° Trajectory
8-VAN Series: 5° Trajectory
10-VAN Series: 10° Trajectory
12-VAN Series: 15° Trajectory
15-VAN Series: 23° Trajectory
18-VAN Series: 26° Trajectory

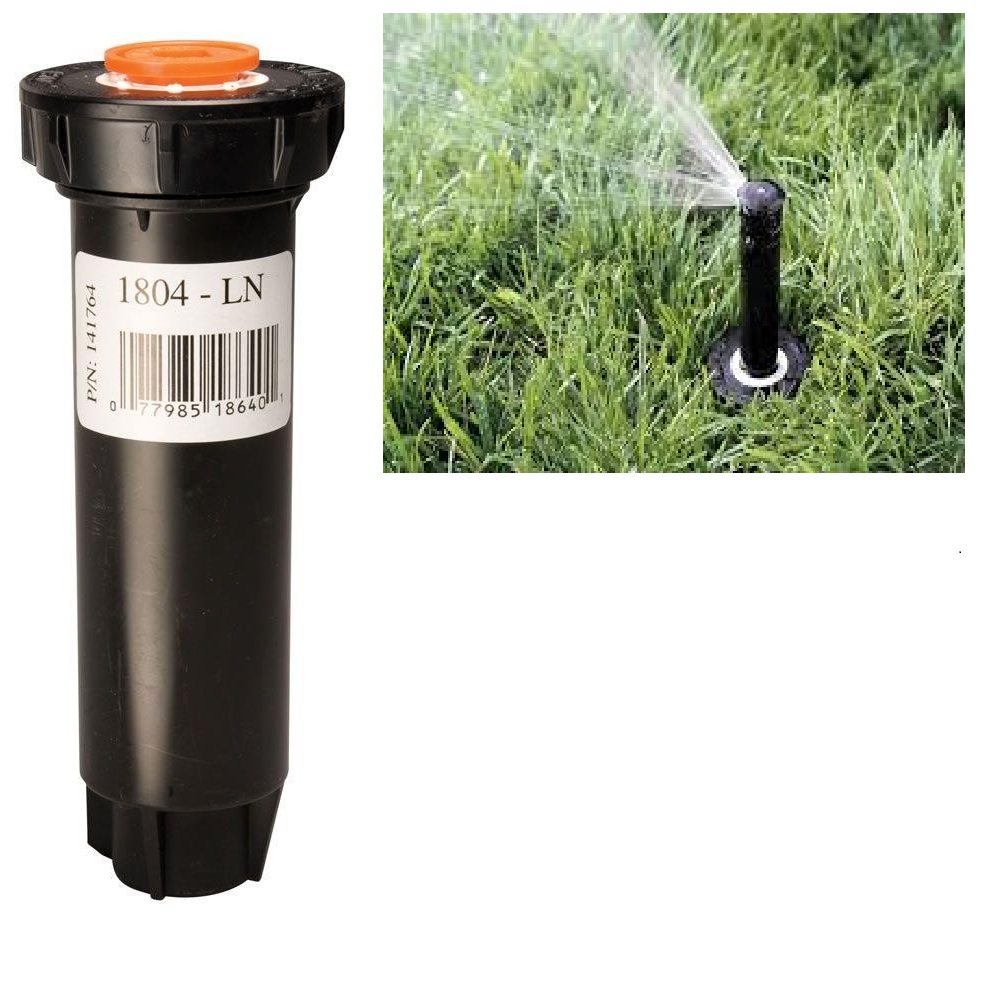

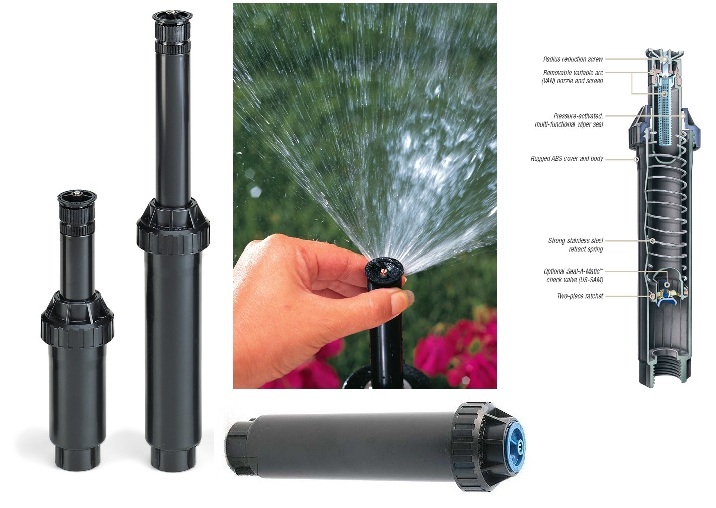

UNI-SPRAY SPRAY HEAD, BODY

Supply,Fixing & commissioning of Pop up spray head US400 having variable arc nozzles (VAN NOZZLES) and two piece stem ratchet (0 to 360 degrees) Arc adjustable nozzle capable of covering 0.9-5.5m at 1.0-2.1 Bars with a discharge rate of 0.16- 0.33lps.The Spray Head body, stem, nozzle ,ratchet and screen shall be constructed heavy-duty, ultraviolet resistant plastic and stainless steel with multifunctional pressure activated wiper seal with small exposed cover and pop spray body shall with stand upto 4.8 bar etc., complete, as per the instructions of Architect/Landscape Architect/Engineer In Charge. US400-VAN

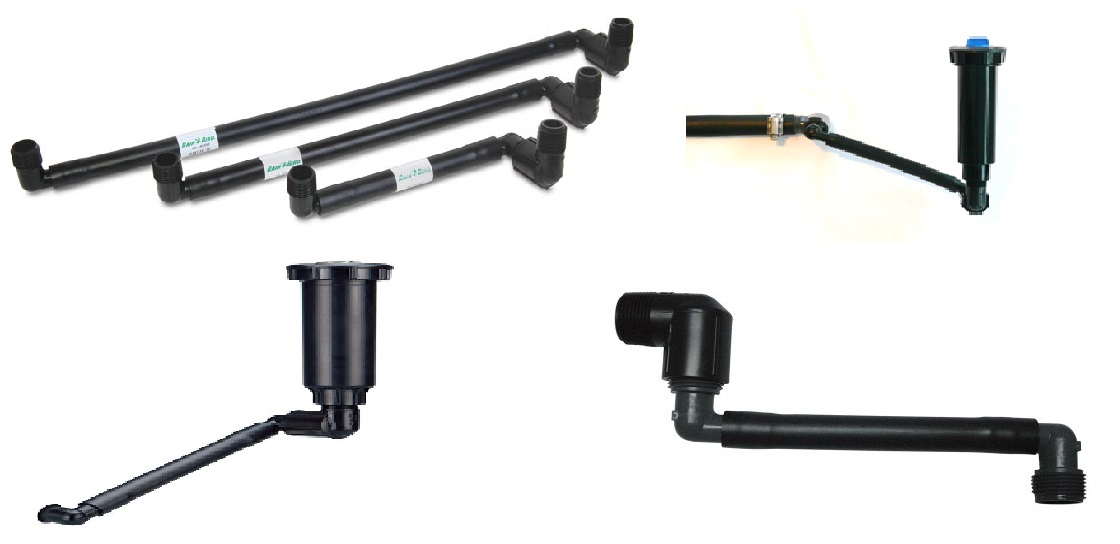

Swing Joint Assemblies

Supply,Fixing & commissioning of 1/2", 3/4" Pop up Connecting Swing joint Assembly. The tubing shall be made of polyetylene having wall thickness of 2.3mm ,a working pressure of 5.5 kg/cm2 at 43oC and a surge pressure of 16.6 kg/cm2. Flex pipe textured for wet conditions.The fittings shall be made of UV resistant thermo plastic etc., complete, as per the instructions of Architect/Landscape Architect/Engineer In Charge..SA Series.

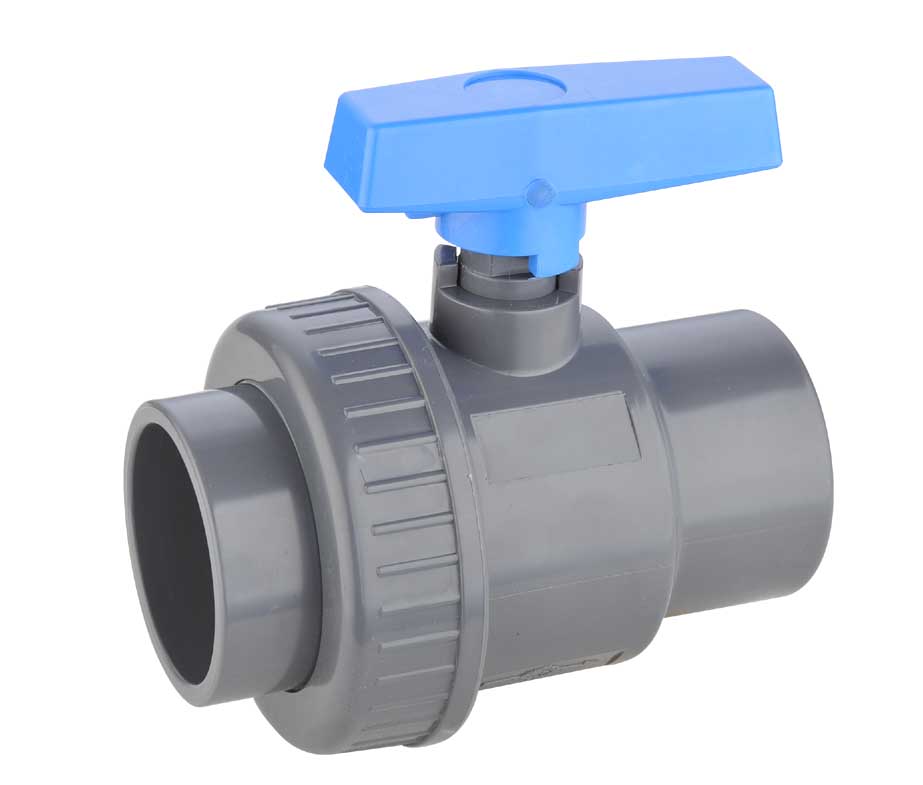

SINGLE UNION BALL VALVE

Supply,Fixing & commissioning of PVC Single Union Ball Valve,security pivot to maintain lever in space,double water tight joint,direct injection stem,Stem O-Ring, non mechanical ,ball Seals with backing seals and with a base which permits maximum penetration into the valve of size 63mm, 50mm, 40mm & 32mm with pressure rating PN 10 etc., complete, as per the instructions of Architect/Landscape Architect/Engineer In Charge.

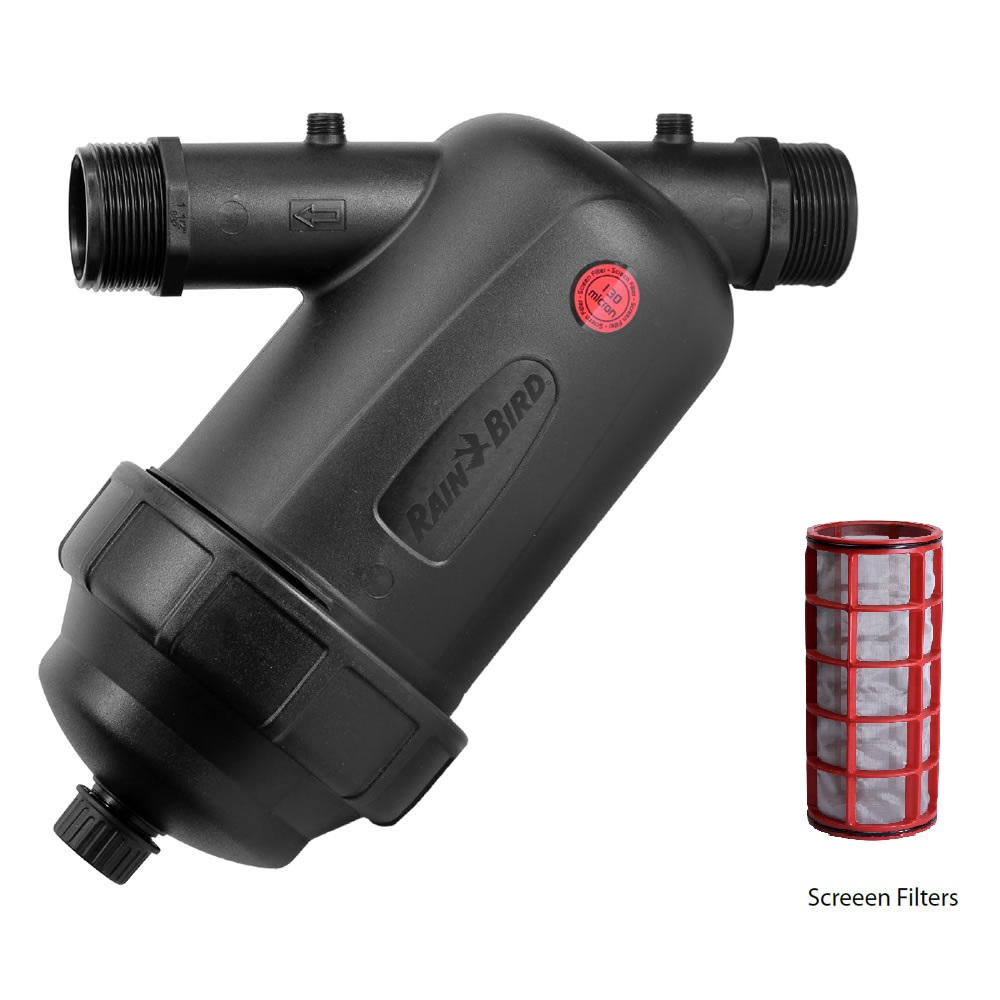

SCREEN FILTER

Stainless Steel Screen filtration options

Up to 10X increase in filtration area

Sizes ranging from 1” NPT to 2” NPT

Max flow rates up to 110 gpm

120 mesh/130 micron filtration level

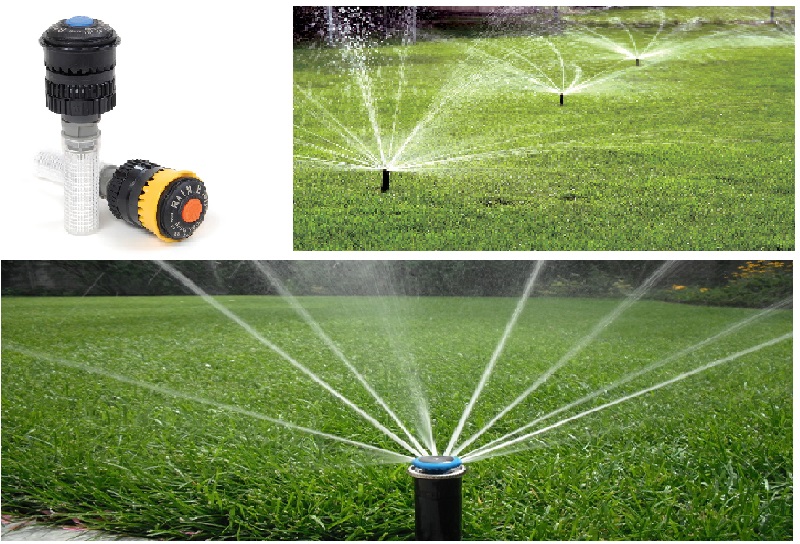

ROTARY NOZZLES

Low precipitation rate of 15,2 mm/hr reduces run-off and erosion.

With approximately 60% less flow than conventional spray nozzles, Rotary Nozzles allow more heads per zone, reducing overall system complexity and cost.

Multiple, rotating streams uniformly distribute water throughout the 4,0 to 7,3 m.

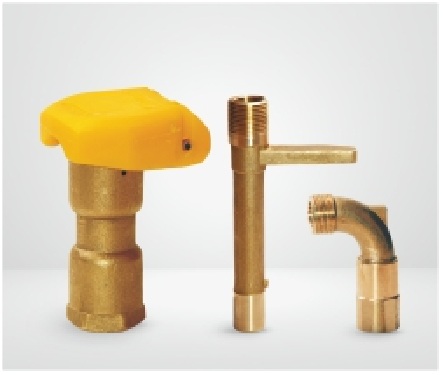

QUICK COUPLING VALVES

Supply,Fixing & commissioning of 3/4th Quick coupling valve made up of solid brass with locking cover corrosion resistant and stainless steel spring etc., complete, as per the instructions of Architect/Landscape Architect/Engineer In Charge. 3RC

Supply,Fixing & commissioning of 3/4th Key threads into top of QCV to provide water access etc., complete, as per the instructions of Architect/Landscape Architect/Engineer In Charge. 33DK

Supply,Fixing & commissioning of 3/4th Hose Swivel Made up of Solid Brass Swivels up to 360 degrees to allows hose to be pulled in any direction & Also to prevent Hose Damage etc., complete, as per the instructions of Architect/Landscape Architect/Engineer In Charge. SH-0

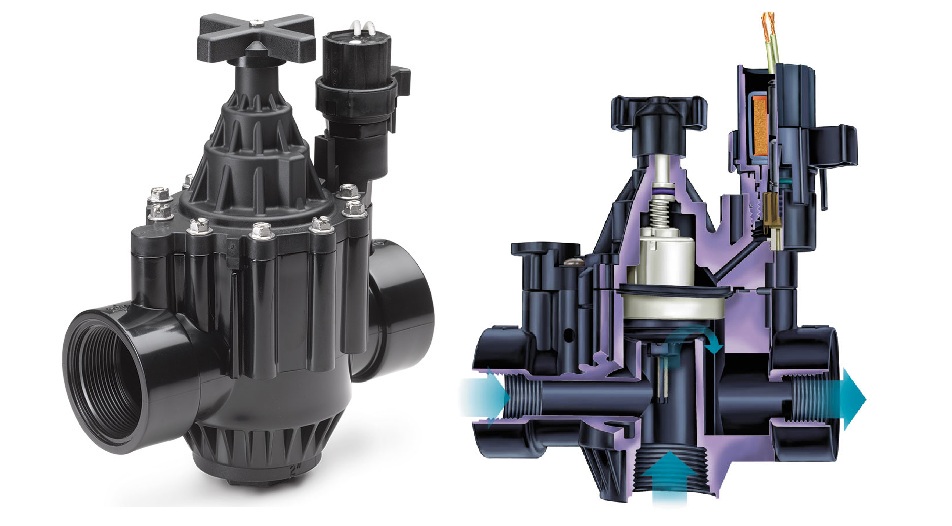

SOLENOID VALVE 2"

Accomodates field-installed PRS-Dial pressure regulating modules adjustable from 1.0 to 6.9 bar (to be ordered separately)

Also available in 9v solenoid configuration: 100-PGA-9V(1"), 150-PGA-9V(1 ½”) , 200-PGA-9V(2")

HOSE END CONTROLLER

Easy-to-use 7-day digital timer with advanced scheduling features for use with hose-end sprinklers, drip irrigation and soaker hose, Use for watering all around your yard: gardens, landscaping beds, newly seeded as well as established lawns

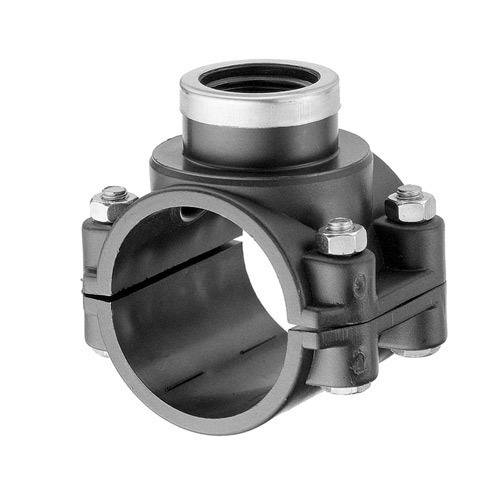

Clamp Saddles

Clamp Saddles 40 x ½”, 40 x ¾”, 50 x ½”, 50 x ¾”, 63 x ½”, 63 x ¾”

Supply,Fixing & commissioning of Imported HDPE service saddle of varying size upto 63mm dia with pressure rating of PN 10 etc., complete, as per the instructions of Architect/Landscape Architect/Engineer In Charge.

5004 PC SAM

4 in. 5000 Series Part-Circle Pattern Pop-up Rotor with SAM Check Valve, Faster maintenance with a new self-cleaning arc adjustment screw, Heavy-duty cover assembly for extra durability, Rain Curtain™ Nozzles

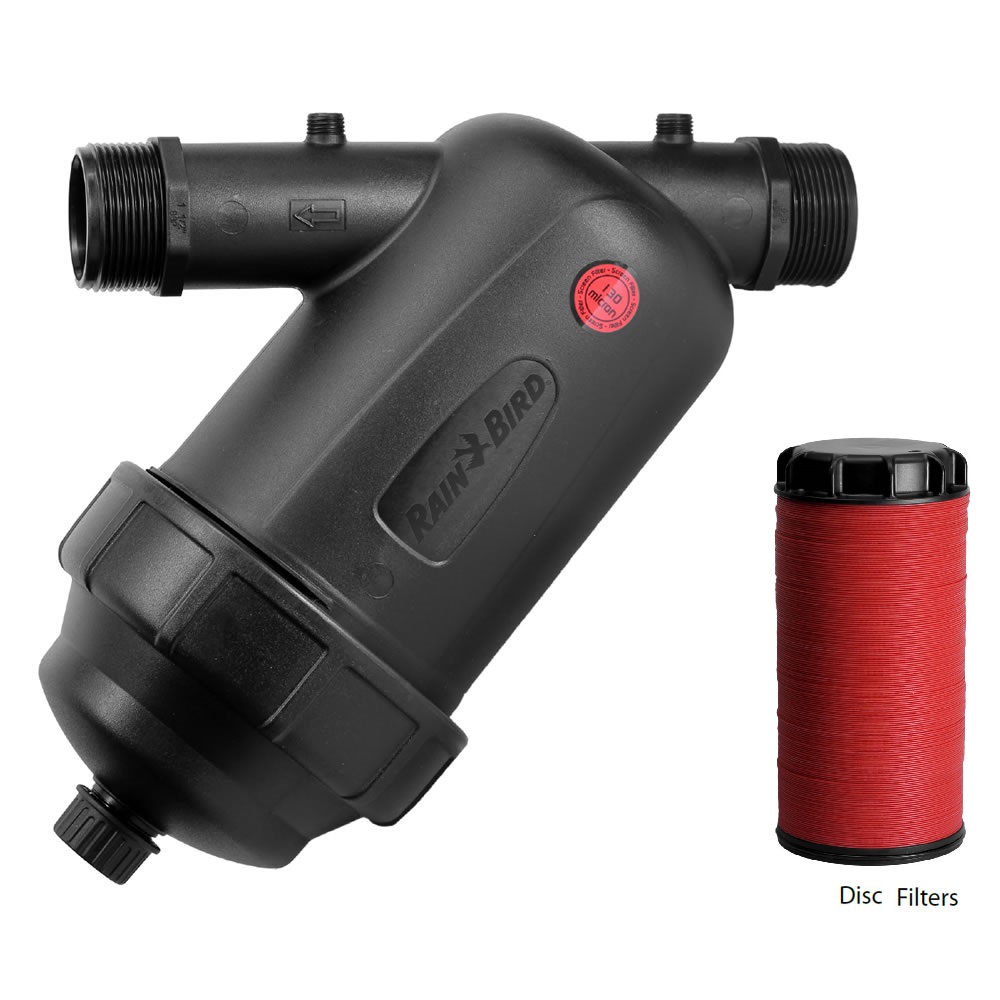

1". 1½”, 2" DISC FILTER

Supply, Fixing & commissioning of 2" Large Capacity Y Filters for submain filteration Have High Flow & Low Maintenance With a Solid Build, Maximum Flow Up to 110 gpm (25m³/hr), Maximum Pressure 116 psi (8 bar),Maximum Temperature Up to 140ºF (60ºC) etc., complete, as per the instructions of Architect/Landscape Architect/Engineer In Charge.
